Anti-EGFR (Cetuximab biosimilar) mAb

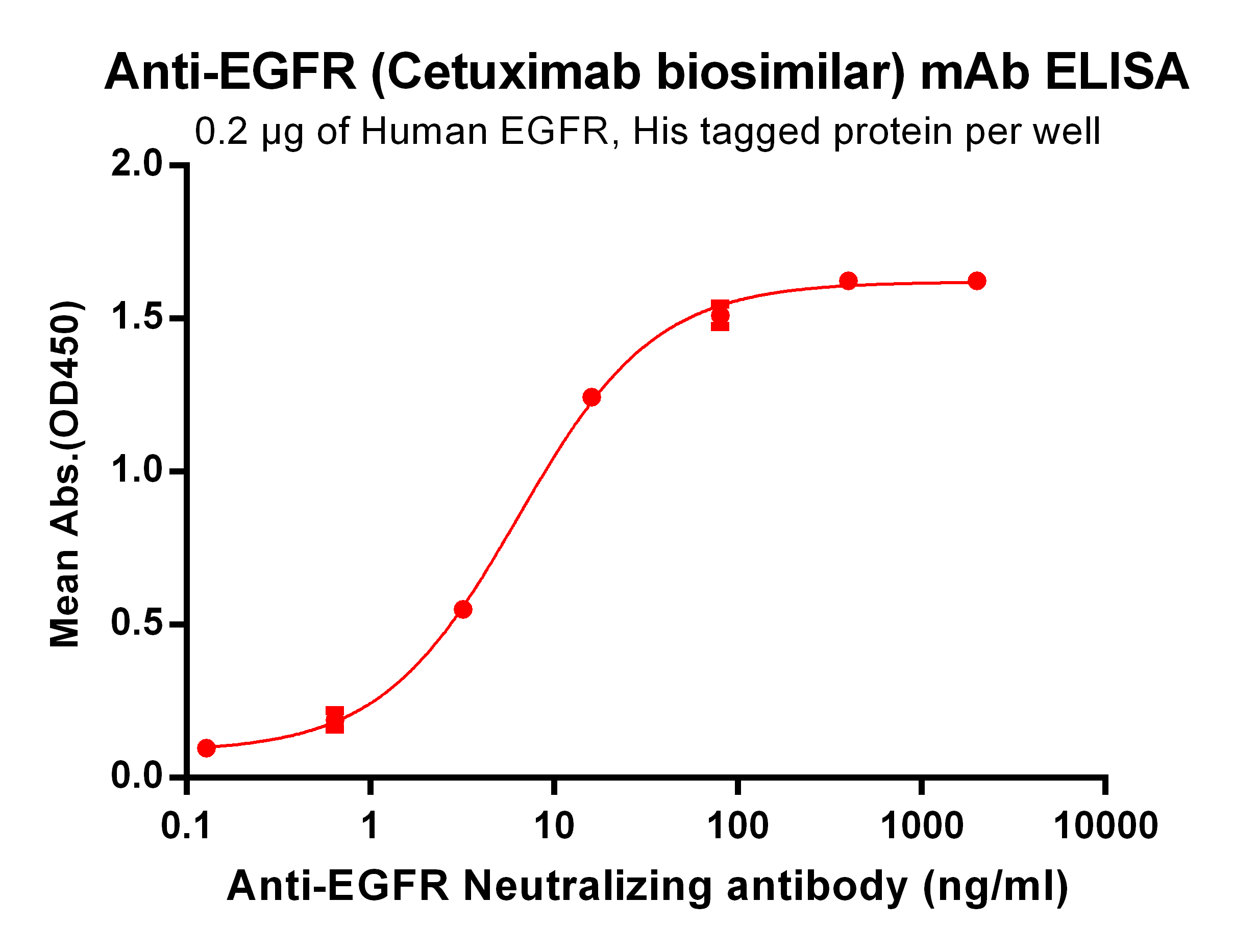

Figure 1. ELISA plate pre-coated by 2 μg/ml (100 μl/well) Human EGFR, His tagged protein PME100099 can bind Anti-EGFR   Neutralizing antibody in a linear range of 0.64-80 ng/ml.

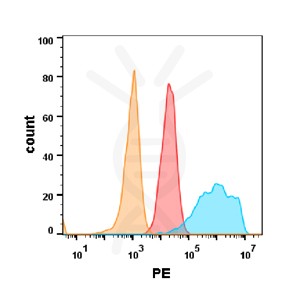

Figure 2. EGFR protein is highly expressed on the surface of Expi293 cell membrane. Flow cytometry analysis with Anti-EGFR (Cetuximab) on Expi293 cells transfected with human EGFR(Blue histogram) or Expi293 transfected with irrelevant protein(Red histogram), and  Isotype antibody on Expi293 transfected with irrelevant protein(Orange histogram)

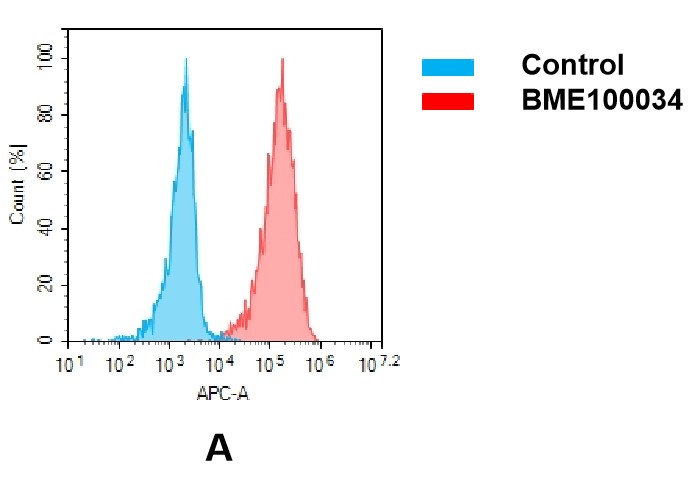

Figure 3. Flow cytometry analysis of antigen binding of anti-human EGFR mAb(BME100034).
(A) A clear peak shift of BME100034 was seen compared to the control when incubated with EGFR-expressing Hela cells, indicating strong binding of BME100034 to EGFR. Antibodies were incubated at 2 μg/mL.

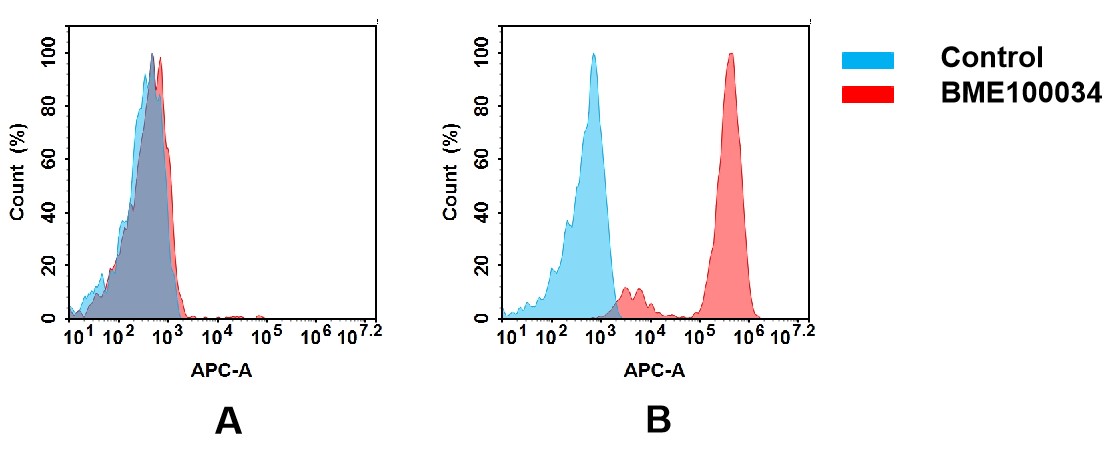

Figure 4. Flow cytometry analysis of antigen binding of anti-human EGFR mAb(BME100034).
(A) BME100034 does not bind to Jurkat cells that do not express EGFR.
(B) A clear peak shift of BME100034 was seen compared to the control when incubated with EGFR-expressing A431 cells, indicating strong binding of BME100034 to EGFR. Antibodies were incubated at 5 μg/mL.
